All stainless steel pressure gauge is an instrument with ultra-high pressure capability, and its main feature is that all materials are made of stainless steel. Stainless steel has excellent corrosion resistance and can operate stably for a long time in various harsh environments. All stainless steel pressure gauges are widely used in high pressure occasions, especially ultra-high pressure environments, due to their excellent performance.

All stainless steel pressure gauge has the characteristics of high precision, high reliability and long life. It has a wide measurement range and can cover ultra-high pressure values from hundreds of MPa to several gigaPascals. At the same time, the all-stainless steel pressure gauge also has the characteristics of fast response, which can accurately reflect pressure changes in real time. In addition, the pressure gauge also has the characteristics of anti-vibration, anti-vibration, etc., and can work stably and reliably in harsh working environments.

All stainless steel pressure gauges are widely used in petroleum, chemical industry, aerospace and other fields, especially in ultra-high pressure environments such as oil and gas wells and deep sea exploration, and their role is irreplaceable. The emergence of all stainless steel pressure gauges provides an effective means of pressure monitoring for industrial production and ensures the safety and stability of the production process.

application
The product is suitable for harsh and corrosive environments, measuring non viscous, non crystalline, and slightly corrosive gas liquid media. The table is designed with safety barriers to protect the safety of the observation surface. There is a pressure relief back cover on the back to release internal pressure caused by the rupture of overloaded elastic components, enhancing the safety of personnel and facilities. At the same time, a unique structural design is adopted, allowing the product to withstand pressure shocks ranging from 2.5 to 4 times the range. It is mainly used in industries such as petroleum, chemical, metallurgy, electricity, food, pharmaceutical and environmental protection, machinery, shipbuilding, etc.
technical parameter

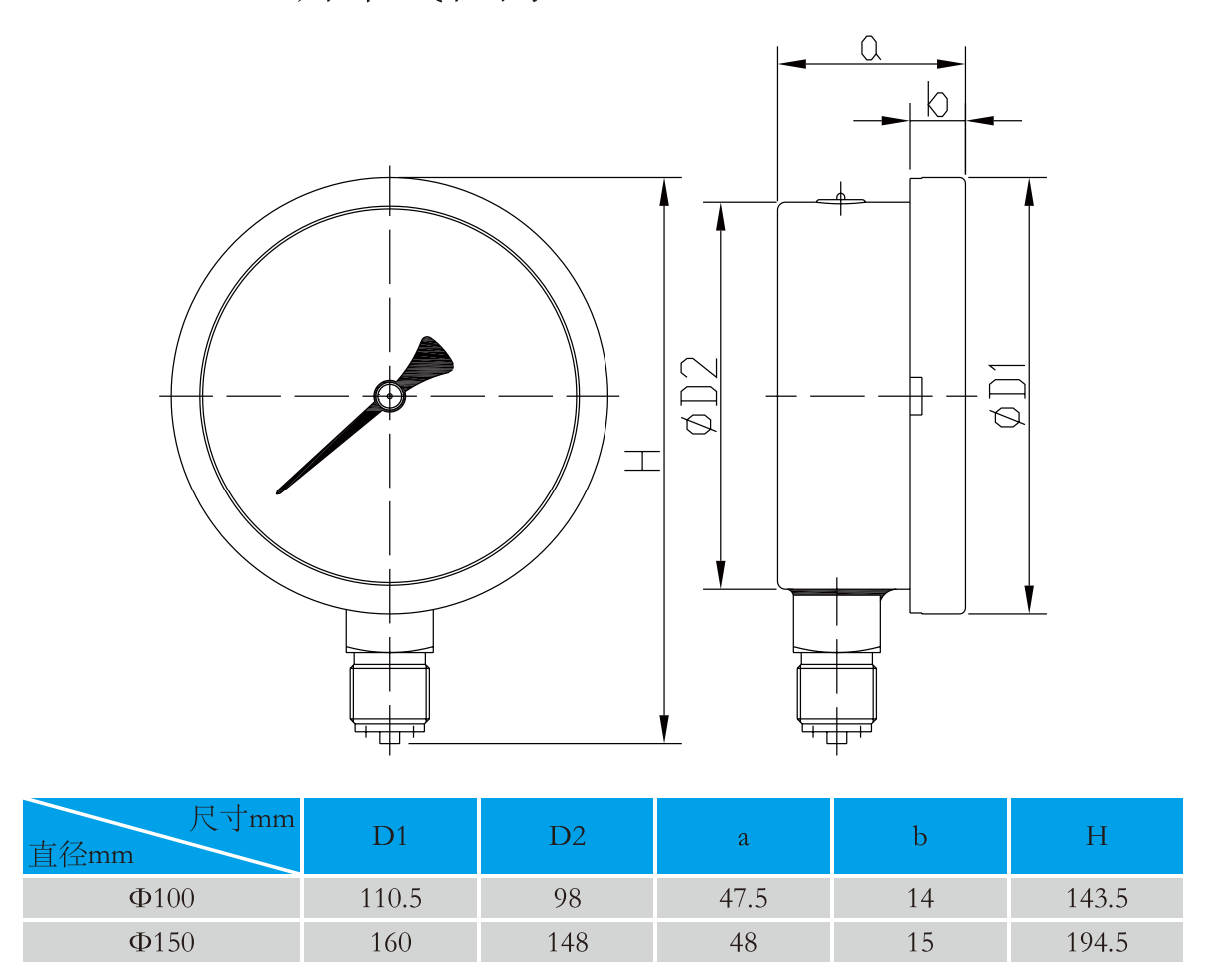

Nominal diameter: 100mm
Accuracy level: 1.0, 1.6
Measurement range: -0.1~0~0.06 ······ 400Mpa
Or other equivalent pressure vacuum range
Overpressure capacity:
<1.6MPa... 200%
2.5MPa... 150%
400MPa100%
Environmental temperature: -40 ℃~60 ℃ Medium temperature: -40C~100 ℃
When the ambient temperature deviates from 20 ℃± 5 ℃, the indication error of the instrument shall not exceed 0.04%/℃.
Process connection: M20 × 1.5, 1/2 "NPT, G1/2"
(Customizable according to user requirements)
Pressure sensing element: C-tube
Liquid receiving material: 316L (Monel optional) Shell material: 316L
Instrument pointer: aluminum alloy, black instrument dial: aluminum alloy, white background, black text sealing material: silicone rubber
Instrument glass: Safety glass Protection level: IP65, IP66
option
Diaphragm chemical sealed dual range dial
Instrument fluid filling (glycerol, silicone oil, fluorine oil, etc.) Radiator (can adapt to higher medium temperatures)
