application
The product is suitable for measuring the positive pressure, negative pressure, or positive and negative pressure of liquids, gases, and other media that do not crystallize, solidify, or corrode copper alloys and tin solder. Widely used in industries such as petroleum, chemical, metallurgy, power, food, medicine, environmental protection, machinery, fire protection, HVAC, etc.
technical parameter

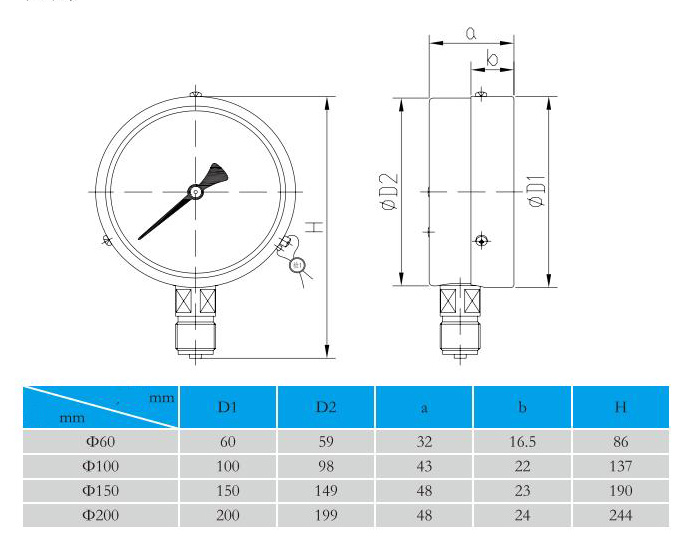

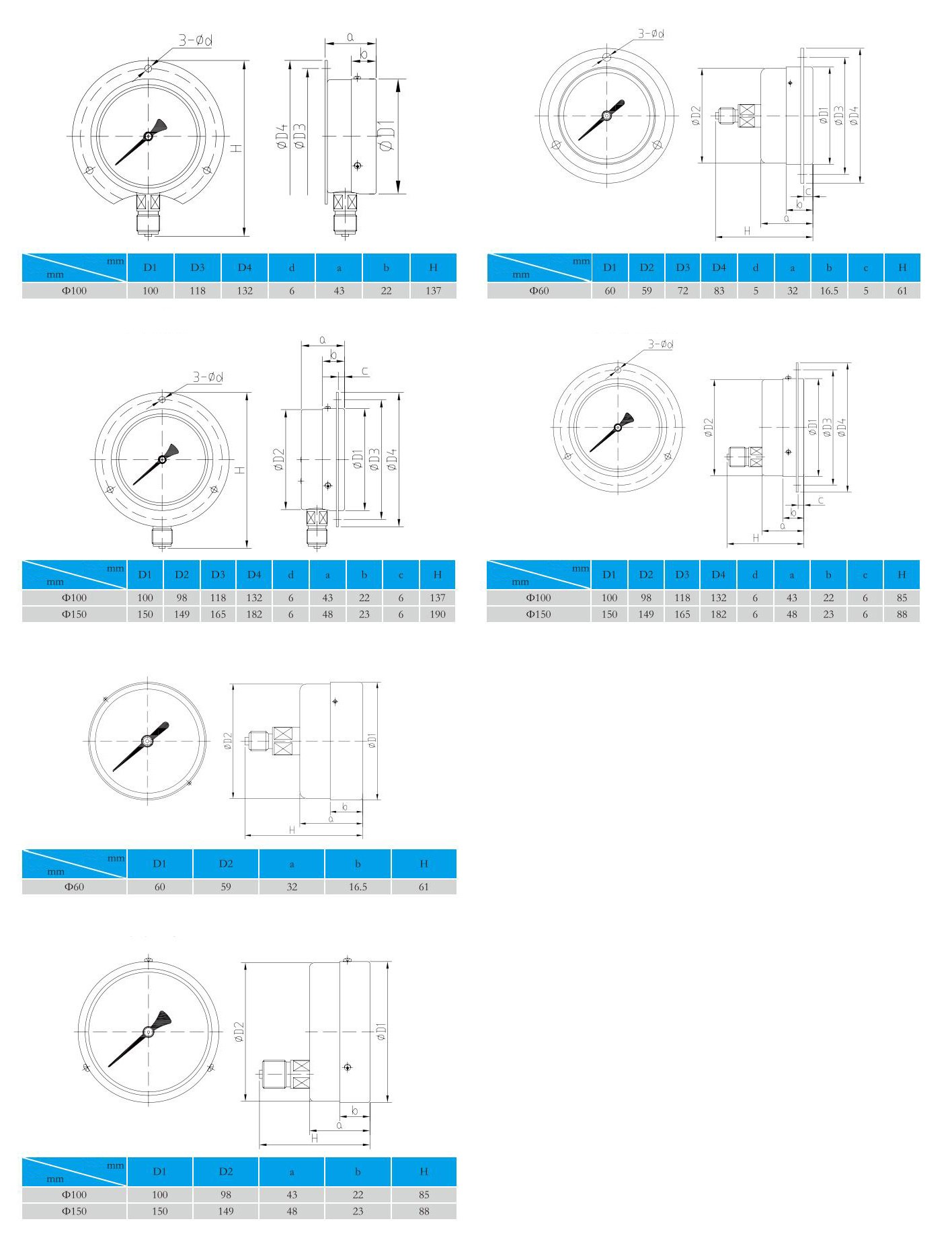

Nominal diameter: φ 60 φ 100 φ 150 φ two hundred
Accuracy level: φ Grade 60 2.5
φ 100 φ 150 φ 200 Grade 1.6
Measurement range: -0.1~0~0.1 ········ 60MPa
Or other equivalent pressure vacuum range
Environmental temperature: -40C~70C
Medium temperature: -40C~100C
When the ambient temperature deviates from 20C to 5C, the indication error of the instrument shall not exceed 0.04%/C
Process connection: D60M14X15, its M20X1.5
Liquid receiving material: copper alloy
Case material: carbon steel spray plastic (304SS optional)
Movement material: copper alloy
Pressure sensing element:<10MPa C-type tube
≥ 10MPa spiral tube
Instrument pointer: aluminum alloy, black
Instrument dial: aluminum alloy, with black lettering on a white background
Instrument glass: Flat glass (organic glass optional)
Protection level: IP54
