General pressure gauge Y40 Y50
Keywords:Ordinary pressure gauge、Shockproof pressure gauge
Category:
Product Description
application
The product is suitable for measuring the pressure of liquids, vapors, and gases that do not corrode copper alloys and tin solder due to non crystallization or solidification. Widely used in industries such as chemical, environmental protection, and machinery.
technical parameter
Nominal diameter: D40mm, D50mm
Accuracy level: 2.5, 4.0
Measurement range: -0.1~0~0.1... · 40MPa or other equivalent pressure vacuum range -40C~70C ambient temperature Poerh degree: radial. When the ambient temperature deviates from 20C to 5C, the indication error of the instrument shall not exceed 0.04%/C
Process connection: D40 M10X1, 1/8 "NPTD50 M14X1.5, 1/4" NPT pressure sensing element:<10MPa C-shaped pipe>10MPa spiral pipe
Liquid receiving material: copper alloy
Case material: carbon steel spray plastic (304SS optional)
Instrument glass: Organic glass (flat glass optional)
Protection level: IP54

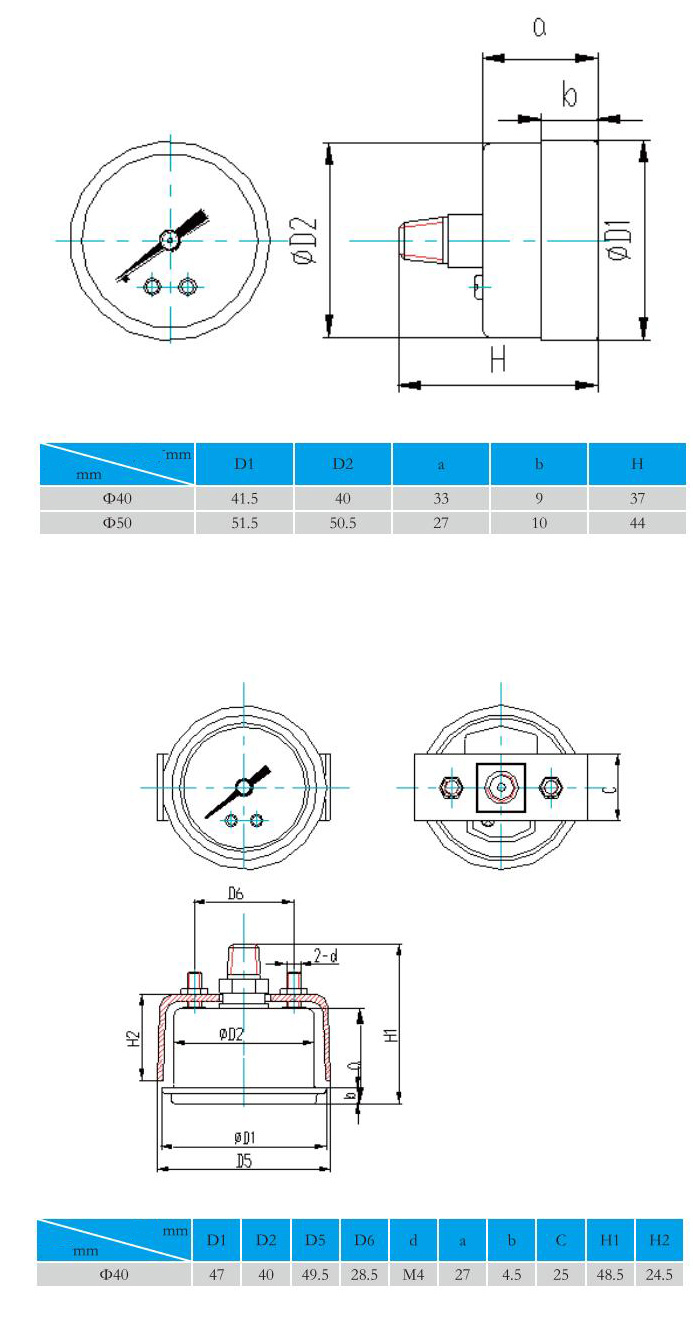

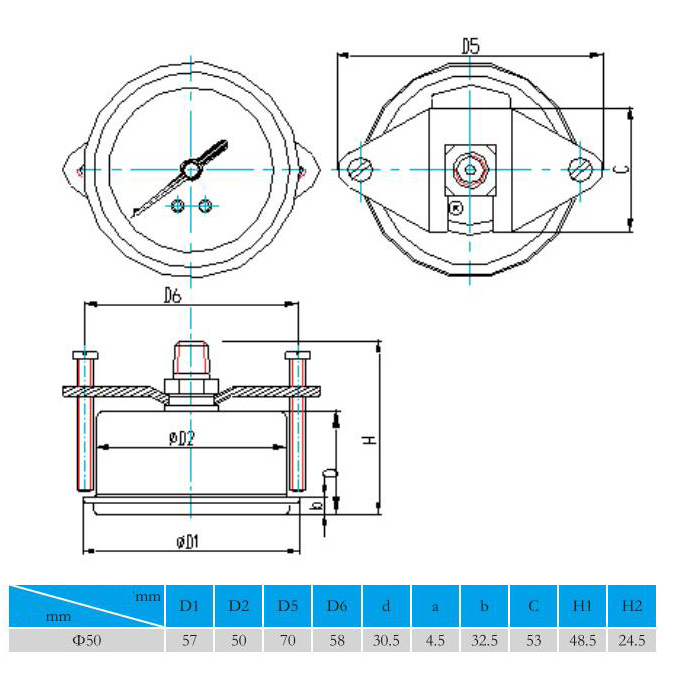

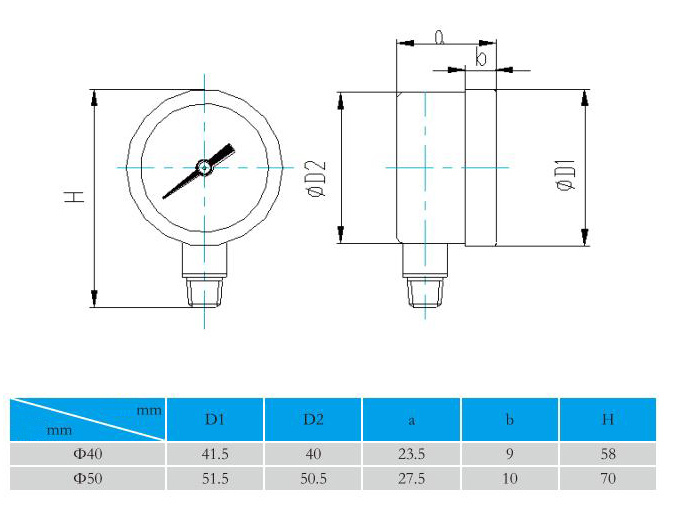

Overall dimensions
| And | General pressure gauge |
| 40 nominal diameter | 40:Φ40mm 50:Φ50mm |
| AO installation method | AO: Radial edgeless ZO: central axis edgeless ZT: center axis forward side BO: lower axial edgeless BT: lower axis front side |
| 205 Housing type | 205: Iron shell compression type 505: Stainless steel case compression type |
| M120 range | See Appendix 1, Quantum Code Table, for details |
| Z18 connection method | See Appendix 2 Thread Code Table for details |
| Other options | See Schedule 3 Additional Options Table for details |
